ST-25

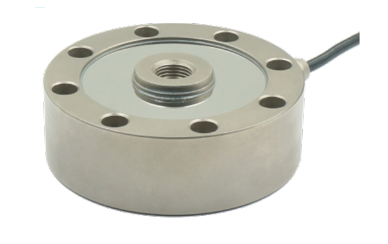

产品图片
PRODUCT IMAGE

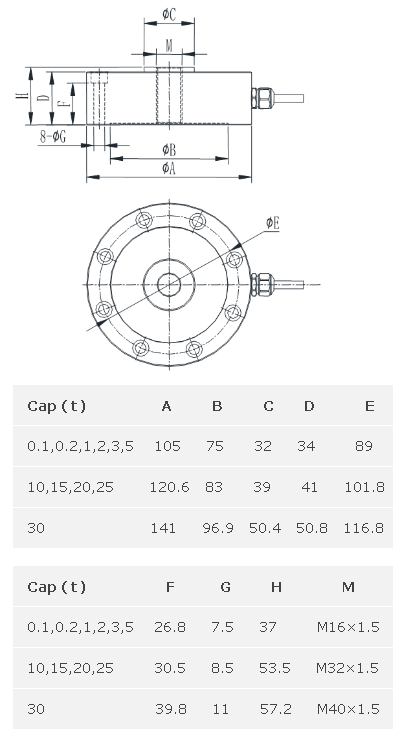

安装尺寸
MOUTING DIMENSION


特点与用途
FEATURES & APPLICATIONS
  • 轮辐式传感器

  • 合金钢/不锈钢材料

  • 拉压双向

  • 用于试验机,汽车衡,料斗秤,各种工业称重系统等

  • 可定制其它量程


  • Pancake type load cell

  • Alloy steel / stainless steel

  • Tension and compression application

  • Mainly used for testing machine , truck scales,hopper scale and
    industrial  measuring system

  • Customize other capacity

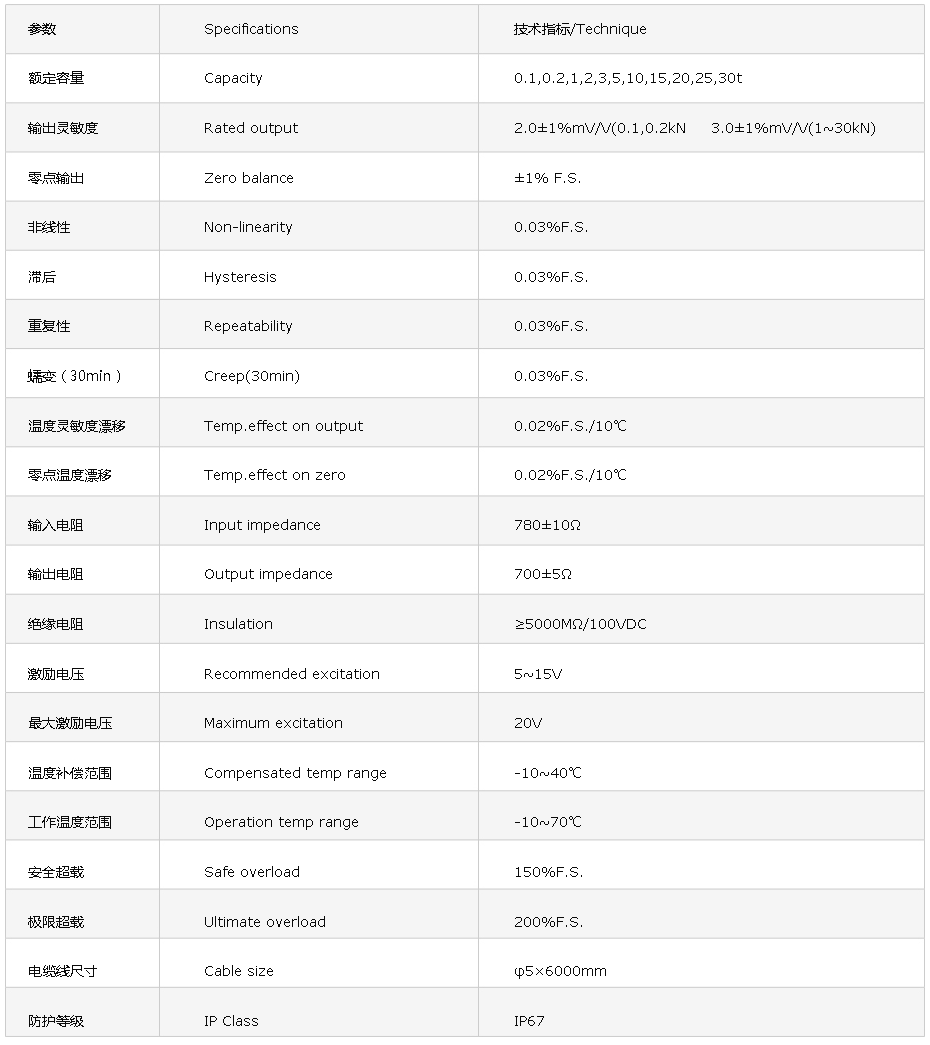

技术参数
SPECIFICATIONS

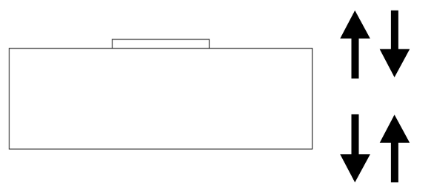

受力方式
LOAD DRIRECTION

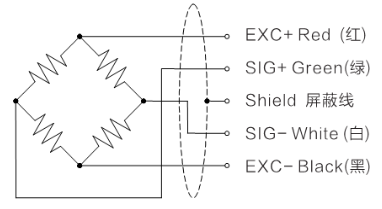

配线图
WIRING CODE
